Ricoh A8610 (432702) Interactive Baltsboard 86'' 3840x2160, Melns

Tehniskās specifikācijas

svars	82.000 Кг.
garums	2130.000 Мм.
augstums	1330.000 Мм.
platums	220.000 Мм.

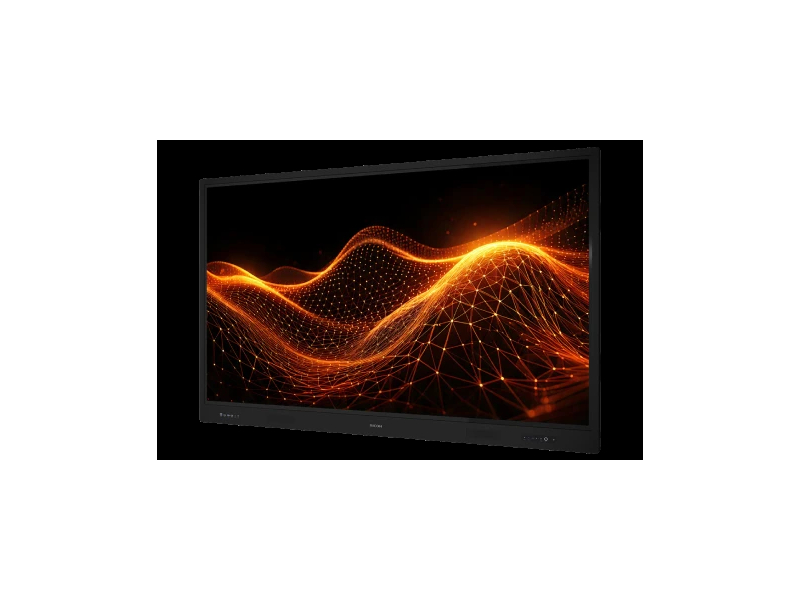

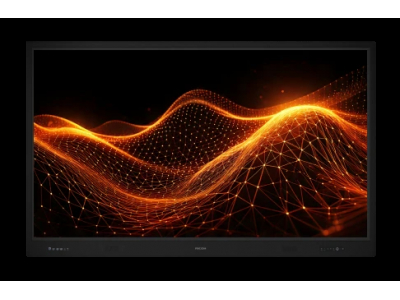

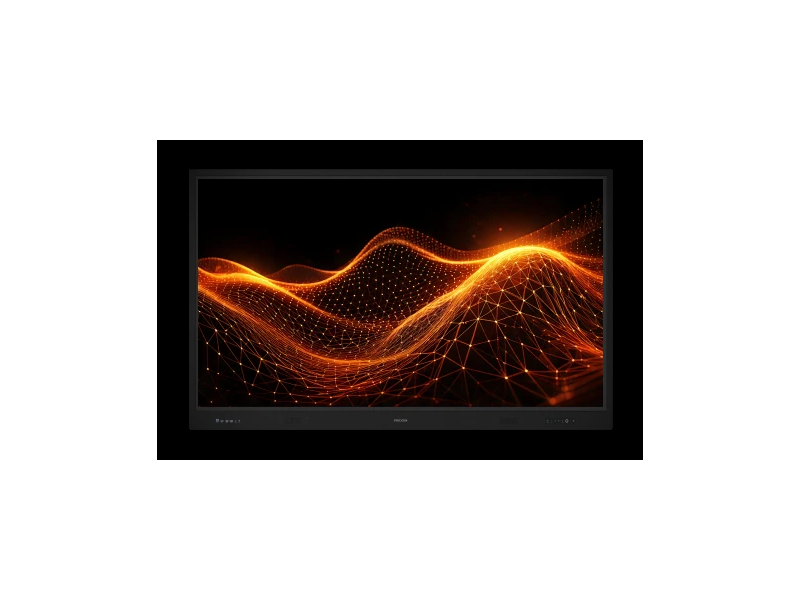

A8610 Interactive Baltsboard

• Panel size (diagonal): 86" wide
• Enjoy crisp graphics with 3840 x 2160 resolution
• Multi-touch point functionality (up to 40 touch points)
• Supports both wired and wireless connections



GENERAL

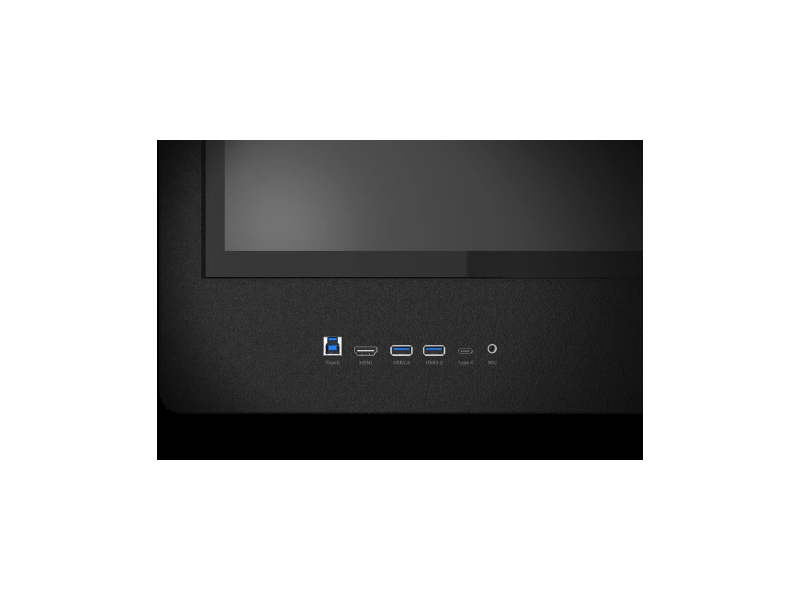

Front Interface	HDMI x1, USB C x1, USB A 3.0 x2, USB B 3.0 x1, MIC In x1
Rear Interface	USB A x3, USB C x1, USB B x3, HDMI In x2, DisplayPort x1, OPS Slot x1, RS232 x1, Audio Out x1, Line out or Headphone x1, SPDIF x1, HDMI Out x1, LAN 1000Base-T x2
Pre-installed app	Baltsboard, Picture-In-Picture, Eshare, Browser, Settings, Google Play Store, Google Calender, Files by Google, Search, Chrome, Gmail, Maps, YouTube, Drive, YT Music, Google TV, Meet, Photos
Dimensions: W x D x H (mm)	1,981 x 92 x 1,217
Package size: W x D x H (mm)	2,119 x 225 x 1,320
Weight (kg)	65
Housing material (face frame/back shell)	Aluminium/metal plate
Housing Krāsa (face frame/back shell)	Melns/black
VESA	4-M8 screw hole 800 x 400 mm
DISPLAY PANEL
Panel size: diagonal	86" wide
Effective area: W x H (mm)	1,895 x 1,065
Resolution: maximum (Full HD)	3,840 x 2,160
Colours: maximum	1,070,000,000
Brightness: maximum (cd/m²)	400
Contrast ratio	4,000 : 1
Pixel pitch (mm)	0.4935 x 0.4935
Response: grey to grey (ms)	8
Refreshing frequency	60 Hz
Viewing angle: H/V (°)	178/178
LED lifetime	50,000 hours
TOUCH SYSTEM
Touch technology	Infrared Touch Frame/ Zero Bonding
Accuracy (mm in touchable area)	1
Multi touch	Win11/10/8/7/XP, Android
Single touch	Linux, Mac OS X, Chrome
Protection glass thickness: including AR coating (mm)	3.2
Maximum touch points	40
Coating	Anti-glare, Anti-fingerprint
Hardness	8 H
CONTROLLER/ELECTRICAL
OS	Android 13.0 EDLA
Audio output power	15 W x2
RAM	8 GB
ROM Storage	128 GB
WIFI	Wifi5 Module, Wifi6 Module
Bluetooth	BT 5.2

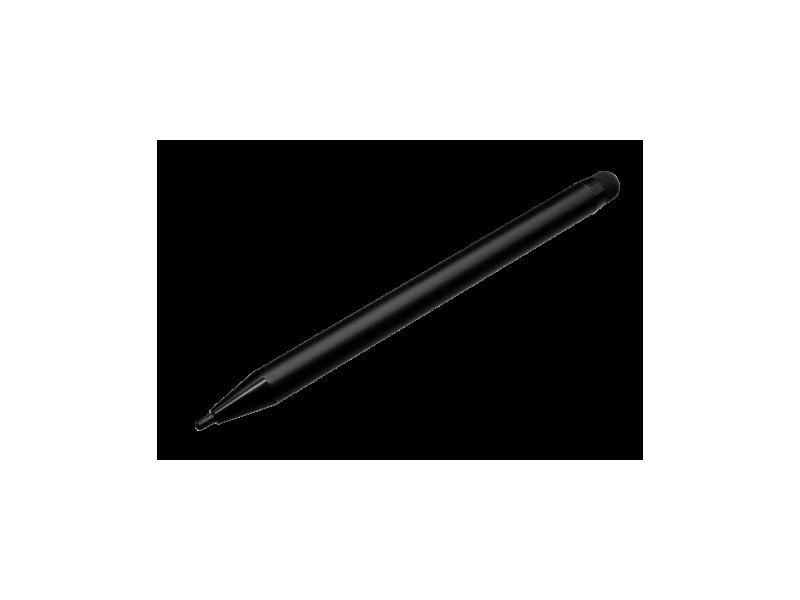

ACCESSORIES	Power cable, Touch pen x2, Read this first sheet, Quick guide sheet, Batteries AAAx2, Remote control, USB type C cable (2m), HDMI 2.0 cable (3m), USB A-B 3.0cable (3m), Plastic clamp (3gab+3gab)
