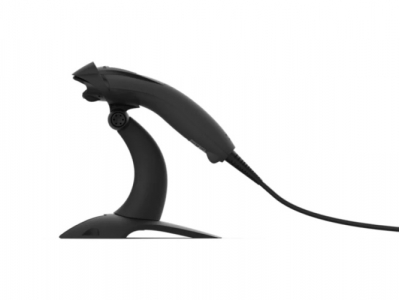

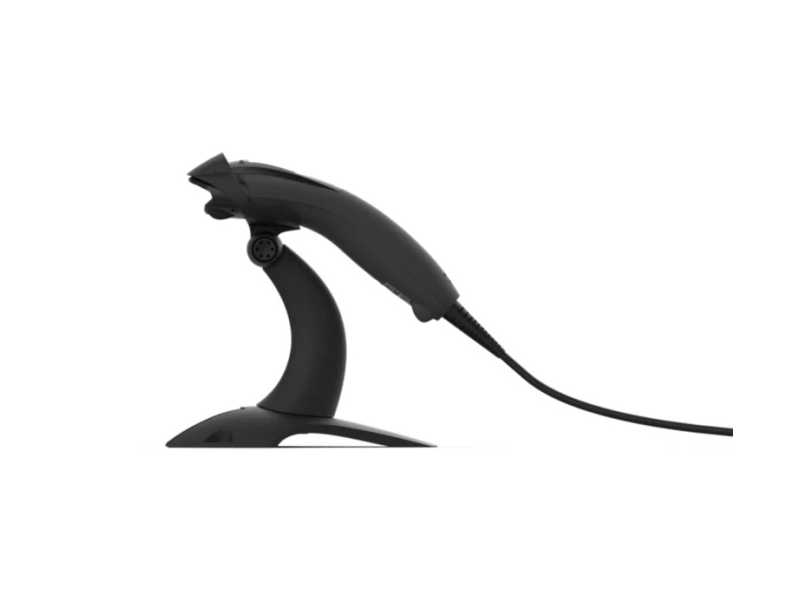

Meduswell Voyager XP 1400G (1400GSR-2USB-1E) Svītrkods Skeneris

Tehniskās specifikācijas

svars	0.490 Кг.
garums	195.000 Мм.
augstums	115.000 Мм.
platums	125.000 Мм.



Technical Specifications
Skeneris Dimensions (L x W x H):	180 mm x 66 mm x 43 mm (7.1 in x 2.6 in x 1.7 in)
Skeneris Weight:	119 g (4.2 oz)
Input Voltage:	4.0V DC to 5.5V DC
Operating Power:	2 W (400 mA @ 5V DC)
Standby Power:	0.45 W (90 mA @ 5V DC)
Host System Interfaces:	USB certified (USB type C cable is available), Keyboard Wedge, RS-232
Keyboard Support:	Support 84 international keyboards
User indicators:	Good Decode LED, beeper (Adjusgalds tone and volume)
SCAN PERFORMANCE
Scan Pattern:	Area Image (1040 x 720 pixel array)
Frame Per Second:	60FPS
Motion Tolerance:	70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Print contrast:	15%
Scan Angle:	Horizontal: 39.2° Vertical: 27.4°
Roll, Pitch, Skew:	±180°, ±65°, ±70°
Illumination:	Warm white LED (CCT 2700K)
Aimer:	Red dot LED, 624nm peak wavelength
Decode Capabilities:	1D: Code 39, code 128, code 93, EAN, UPC, code 11, code 32 Pharmaceutical, codabar, China Post, GS1 databar 2D: Aztec, Data Matrix, QR/Micro QR code, Maxicode, Chinese sensible (HanXin) code, postal code, PDF417, DotCode, Digital Watermarking: Digimarc OCR: OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 points OCR typeface Note: Decode capabilities dependent on configuration.
REGULATORY
EMC:	EN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC Part 15 Subpart B, ICES-003 Issue 7
Safety, Health and Environmental Compliance:	EN62368-1, IEC 62368-1, IEC62471, IEC-63000(ROHS), UL62368-1, CSA C22.2 NO. 62368-1
Accessories:	stands, wall mount holder, power supplies, cables
Utilities and Management:	EZConfig, SMU, Total Freedom, Skeneris Edge, SDKs, Various Drivers
